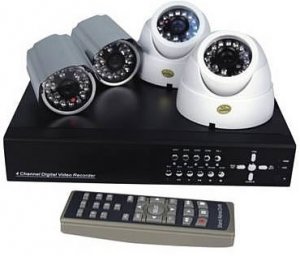

•CS-DVR4CH-5104
4 Channel Wired Networkable Surveillance System
This complete surveillance system includes the following:
• (1) Stand Alone 4 channel DVR
• (2) Day/Night Weatherproof Dome Cameras
• (2) Day/Night Weatherproof Bullet Cameras
• (1) Remote Control
• (4) 50' Cables
• (4) Power Supplies
DVR Specifications:
• Video Input: 4 BNC Connections
• Video Output: 1 BNC Connector
•1 VGA Audio Input: 1 CH in
• Audio Output: 1 CH out
• Display Resolution: 720x480
• Record Resolution: 360x240
• Display Frame Rate: 120 FPS
• Recording Frame Rate: 60 FPS
• Hard drive: 500GB
• PTZ: RS-485
• Network: RJ-45
• Multi-Language selections
• Dimensions = 9.8" x 8.3" x 1.8"
Dome Camera Specs:
• Fully Weatherproof
• Comes with Mounting Bracket
• Sensor: 1/4” SHARP CCD
• Resolution: 420TVL
• Minimum Illumination: 1.0 Lux/F1.2
• Lens: Board Lens 3.6mm
• IR Range: 21 IR LEDs, 60 Feet IR distance
• Power supply: DC12V
• Operation temperature: 14-122°F
• Dimensions: 4.3"(D) x 2.95"(H)
Bullet Camera Specs:
• Fully Weatherproof
• Comes with Mounting Bracket,
• Sensor: 1/4” SHARP CCD
• Resolution: 420TVL
• Minimum Illumination: 1.0 Lux/F1.2
• Lens: Board Lens 3.6mm
• IR Range: 21 IR LEDs, 60 Feet IR distance
• Power supply: DC12V
• Operation temperature: 14-122°F
